VSCode interactions

Overview

This page describes installation and usage of the Cloud Pipeline VSCode/Cursor extension.
This extension allows to use the following Cloud Pipeline functionality within your development environment:

  • list your active compute runs
  • start new instances from the available tools
  • stop running instances
  • open a run in a remote development window so you can work on the machine where the job is running

Installation

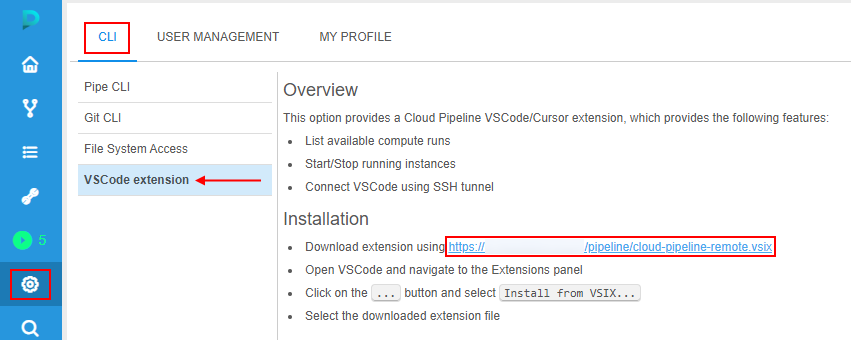

  1. Navigate to the CLI settings - Settings → CLI → VSCode extension:
    CP_VSCodeInteractions
  2. Click download link provided within the settings page.
    cloud-pipeline-remote.vsix extension installation file will be automatically downloaded to your local workstation.

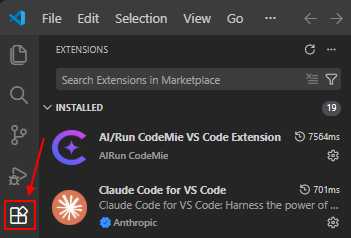

  3. Open VSCode or Cursor development application and open Extensions panel:
    CP_VSCodeInteractions

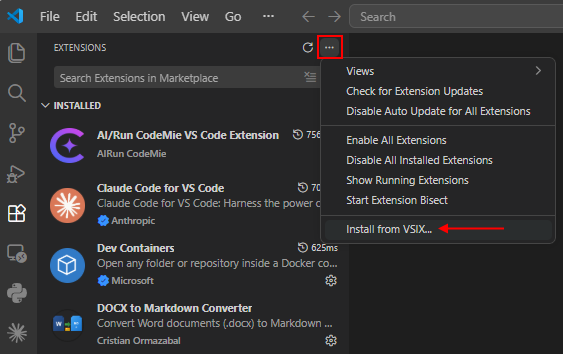

  4. Click More actions menu in the top-right corner and select Install from VSIX...
    CP_VSCodeInteractions

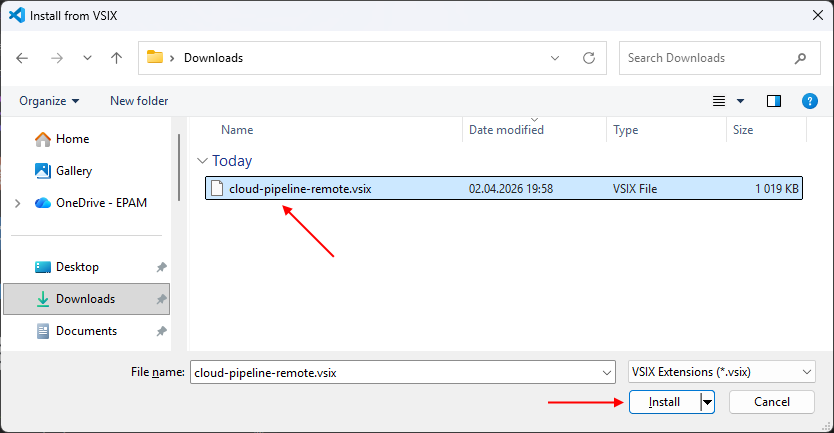

  5. Select cloud-pipeline-remote.vsix file, which was downloaded previously:
    CP_VSCodeInteractions

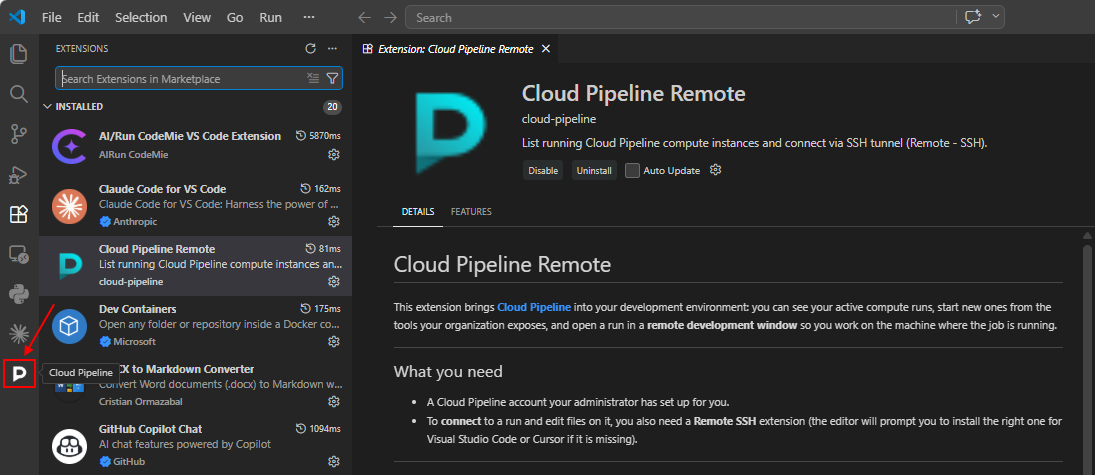

  6. Cloud Pipeline Remote extension will appear in the VSCode toolbar:
    CP_VSCodeInteractions

Authentication

Authentication flow uses the same approach as the Cloud Pipeline pipe CLI:

  • If pipe CLI was previously configured and used on a current workstation - its configuration and authentication token will be used.
    In such case, no additional configuration is required for the VSCode extension.
  • If no pipe CLI config is found - VSCode extension will prompt to sign-in:
    • click Cloud Pipeline Remote extension in the toolbar
    • click Sign-in option:
      CP_VSCodeInteractions

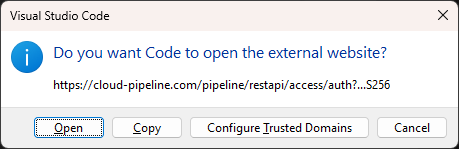

    • VSCode will prompt for a permission to open web-browser, please approve:
      CP_VSCodeInteractions

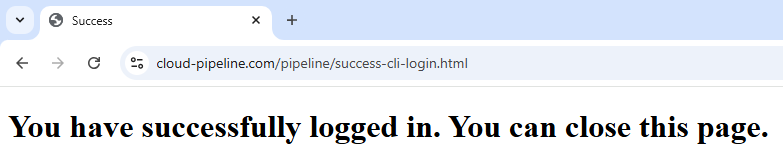

    • A new browser window will be opened to perform authentication. If everything goes well - you will see a message about successful login: CP_VSCodeInteractions
  • At this point, Cloud Pipeline Remote extension is fully configured and ready to be used.

Operations

View a list of active runs

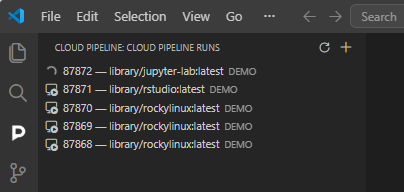

  • By default, Cloud Pipeline Remote extension panel will show a list of currently active runs of a current user.
    List of runs is auto-refreshed every 5 seconds:
    CP_VSCodeInteractions
  • Runs can be shown in two states:
    • Starting CP_VSCodeInteractions - an instance is being initialized, connection can't be established yet.
    • Ready CP_VSCodeInteractions - run is available for connection.

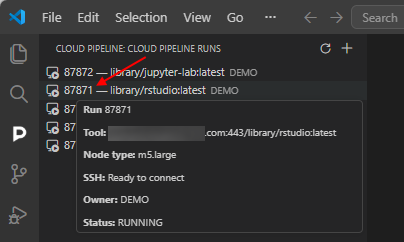

  • Hover an instance with a mouse to see the run details:
    CP_VSCodeInteractions

Connect to an instance

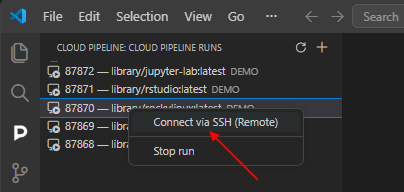

  • Once an instance is ready for connection - double click it or right click and select Connect via SSH:
    CP_VSCodeInteractions

Please note, Cloud Pipeline VSCode extension depends on Microsoft Remote SSH plugin.
If it is not installed - you will be prompted to do so. Click Install Remote - SSH and wait for the installation to complete.
CP_VSCodeInteractions

  • This will open a new VScode window, which will start connecting to a selected instance.

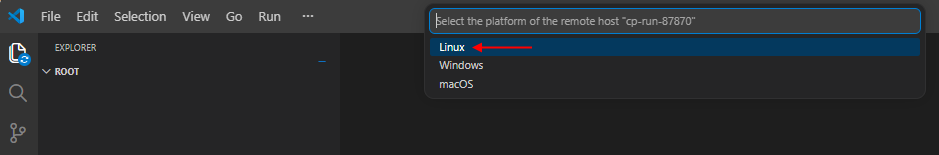

    If you will be prompted to select the platform for the remote host, select Linux:
    CP_VSCodeInteractions

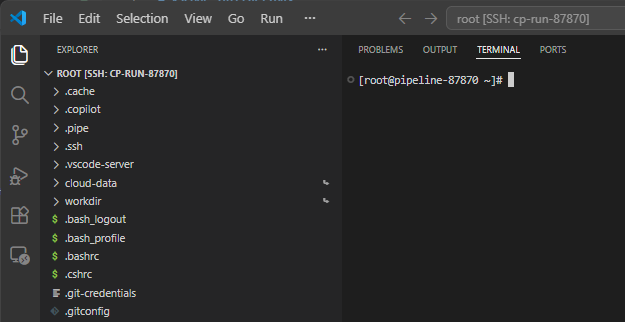

  • Once connection is established - you will see a filesystem of the remote instance and be able to open terminal and execute code remotely:
    CP_VSCodeInteractions

On connect, the extension adds the settings below to the Remote [SSH] settings of the instance (~/.vscode-server/data/Machine/settings.json, or ~/.cursor-server/data/Machine/settings.json in Cursor).
They keep search, file watching and chat assistants (e.g. GitHub Copilot Chat) out of the mounted data storages under ~/cloud-data. Without them a chat request may hang for a long time.

json { "search.followSymlinks": false, "search.exclude": { "**/cloud-data/**": true }, "files.exclude": { "**/cloud-data": true }, "files.watcherExclude": { "**/cloud-data/**": true } }

  • only missing settings are added, values already set on the instance are kept
  • the settings file shall be plain JSON. If it contains comments or trailing commas - nothing is added
  • ~/cloud-data is hidden from the VSCode explorer, the storages stay available in the terminal
  • to change the list - edit cloudPipeline.remoteMachineSettings.values in the VSCode settings. Set a key to null to skip it
  • to disable this behavior - set cloudPipeline.remoteMachineSettings.enabled to false

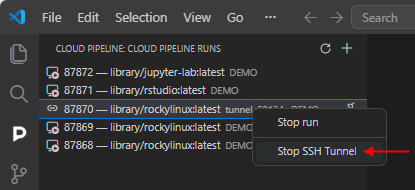

To stop connection to the instance - close VSCode window with opened remote connection and select Stop SSH Tunnel option from the context menu (right-click the instance):
CP_VSCodeInteractions

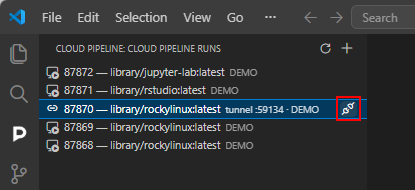

OR hover the instance in the list and click Stop SSH Tunnel icon:
CP_VSCodeInteractions

Start a new instance

Cloud Pipeline Remote extension also allows to start new runs right from the VSCode/Cursor IDEs:

  • Click CP_VSCodeInteractions icon in the Cloud Pipeline Remote extension panel

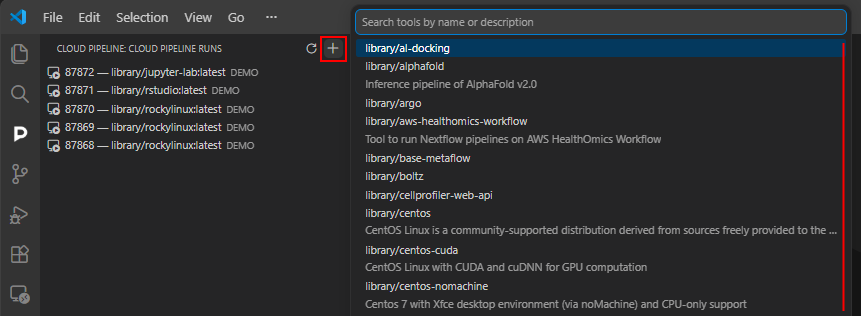

  • This will load a list of available tools. Note: it may take a couple of seconds to load.
    CP_VSCodeInteractions

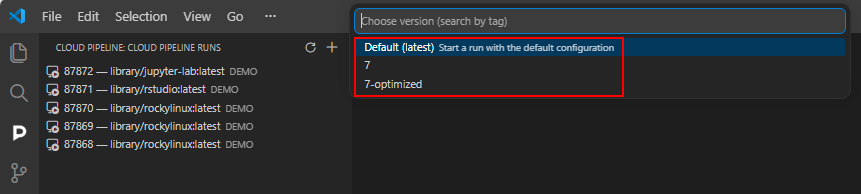

  • Search and select a tool to start. This will bring a tool version selection menu:
    CP_VSCodeInteractions

Cloud Pipeline Remote VSCode extension does not allow to define the tool startup configuration.
A default configuration, defined for that tool/version, will be used to start a new instance.

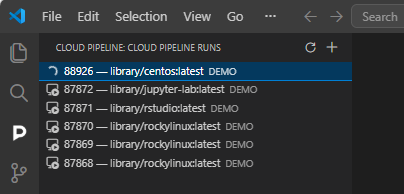

  • Select a version to start a new run of the tool/version. A new instance will appear in the list of runs:
    CP_VSCodeInteractions

Stop an instance

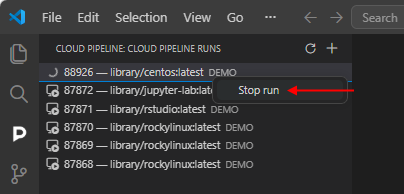

Running instances can be stopped via Stop run option from the context menu (right-click the instance):
CP_VSCodeInteractions

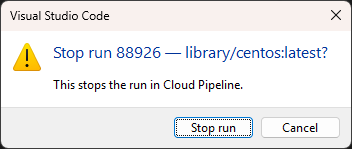

Confirm the stop in the appeared pop-up:
CP_VSCodeInteractions
